Author(s): Aneesh Kaliyanda* and Binay Singh*
The quest for speed, agility, and precision in high-performance racing has driven the evolution of vehicle design, with weight reduction emerging as a key factor in enhancing performance. This paper reviews the transformative impact of lightweight composite materials on modern racing vehicles, such as Carbon Fiber Reinforced Polymers (CFRP), Glass Fiber Reinforced Polymers (GFRP), and Aramid fibers. These advanced materials offer a superior strength-to-weight ratio, enabling the construction of lighter, more efficient vehicles that excel in acceleration, braking, and handling. The paper explores the benefits and applications of these composites across various vehicle components, including chassis, suspension systems, and aerodynamic structures. It examines the challenges associated with their adoption, such as high costs, manufacturing complexities, and regulatory concerns. Additionally, the review highlights future trends and innovations in composite technology, including nano-reinforced composites, bio-composites, smart materials, and additive manufacturing, which promise to revolutionize motorsports further.
The relentless quest for speed, agility, and precision has always been at the forefront of high-performance racing. Central to this pursuit is the vehicle’s weight, a critical factor that profoundly influences every aspect of a race car’s performance. From acceleration to braking, handling, and fuel efficiency, a vehicle’s mass is pivotal in determining its competitiveness on the track. As engineers and designers strive to push the boundaries of what is achievable, the focus on weight reduction has intensified, driving a paradigm shift in the materials used to construct racing vehicles.
In recent years, advanced composite materials have become the cornerstone of modern high-performance racing vehicle design, offering an unmatched combination of lightness and strength. Table 1 shows the global automotive composite market demonstrates robust growth from 2022 to 2028, nearly doubling from $7.2 billion in 2022 to $14.3 billion in 2028. This growth reflects a compound annual growth rate (CAGR) of 12.1% from 2023 onwards. Regionally, Asia-Pacific emerges as the dominant player, increasing its market share from an estimated $2.3 billion in 2022 to $4.3 billion by 2028. North America and Europe also show substantial growth, with North America’s market expanding from $1.9 billion in 2022 to $3.7 billion in 2028 and Europe’s market growing from $1.8 billion to $3.5 billion over the same period. Although smaller markets, Latin America and the Middle East & Africa also see significant increases, reflecting broader global adoption of composite materials in the automotive industry [1- 4]. This overall expansion suggests a strong, ongoing demand for lightweight, high-performance materials as the automotive industry continues to innovate in response to efficiency and sustainability challenges.
|
Year |
Total Market (Billion $) |
Europe |
North America |
Asia-Pacific |
Latin America |
Middle East & Africa |
|
2022 |
7.2 |
1.8 |
1.9 |
2.3 |
0.9 |
0.3 |
|
2023 |
8.1 |
2 |
2.1 |
2.5 |
1 |
0.4 |
|
2028 |
14.3 |
3.5 |
3.7 |
4.3 |
1.8 |
1 |
These materials create significantly lighter structures than their metallic counterparts while providing resilience under the extreme stresses encountered during racing. The benefits of a lighter vehicle are manifold: reduced mass requires less energy for acceleration, leading to quicker lap times and improved fuel efficiency. Additionally, weight reduction in key components such as the chassis and suspension lowers the car’s center of gravity, enhancing stability and handling, particularly in high- speed corners where precision is critical.
The performance advantages of weight reduction extend beyond speed and agility. A lighter vehicle accelerates more rapidly, reaches higher top speeds, and responds more effectively to steering inputs, reducing the risk of understeers or oversteers. Furthermore, weight reduction contributes to sustainability by improving fuel efficiency and potentially reducing the environmental impact of motorsports.
This review explores the transformative impact of lightweight composite materials on high-performance racing vehicles. It begins by examining various composites, including CFRP, GFRP, and Aramid fibers, and their applications across different vehicle components. The paper then delves into the resulting enhancements in performance and the challenges associated with adopting these advanced materials, such as cost, manufacturing complexities, and regulatory considerations. Finally, the review provides a perspective on future trends and innovations in composite technology, highlighting how these materials are reshaping the engineering landscape of motorsports and pointing to future directions in their application.

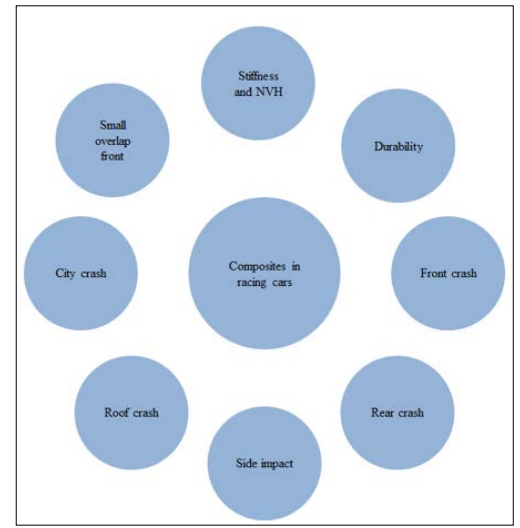

Figure 1 highlights the rationale behind the increasing use of composite materials in racing cars, replacing traditional metallic components. At the center of this decision is the need for improved performance and safety, which composites can provide through their superior stiffness-to-weight ratio. This characteristic is crucial in maintaining the structural integrity of racing cars while contributing to better handling and reducing noise, vibration, and harshness (NVH). Durability is another significant advantage, as composites offer high resistance to fatigue, corrosion, and wear, making them ideal for demanding racing conditions. Furthermore, the image emphasizes the role of composites in enhancing crash performance across various types of accidents, including front and rear crashes, side impacts, roof crashes, small overlap front crashes, and city crashes. Composites are particularly effective in absorbing and dissipating energy during a crash, which improves the vehicle’s safety and reduces the risk of injury to the driver.
Figure 1: Need for Composites in Racing Cars
Racing cars are made from different composites, as mentioned in Table 2. Carbon fiber-reinforced polymer (CFRP), Glass fiber- reinforced polymer (GFRP), Aramid fibers and hybrid composites are more readily used. CFRP and GFRP are two crucial composite materials that have revolutionized the design and manufacturing of racing car components. CFRP is favored for its exceptional strength-to-weight ratio, stiffness, and durability, making it ideal for applications where maximum performance is essential. Using carbon fibers in CFRP results in a material that is five times stronger than steel while being significantly lighter. This combination is critical in racing, where reducing weight without compromising strength can improve acceleration, handling, and overall vehicle performance. Additionally, CFRP’s high stiffness ensures that the car’s structural integrity is maintained under the extreme stresses encountered in racing, contributing to better handling and responsiveness. The material’s resistance to fatigue and corrosion further enhances the lifespan of components, making CFRP a reliable choice in the harsh racing environment.
|
Composite Type |
Key Characteristics |
Common Applications |
|
Carbon Fiber Reinforced Polymer (CFRP) |
High strength-to- weight ratio; High stiffness |
Chassis, body panels, structural components |
|
Glass Fiber Reinforced Polymer (GFRP) |
Good strength-to- weight ratio; Cost- effective |
Body panels, interior components, engine covers |
|
Kevlar Reinforced Polymer |
High impact resistance; Toughness |
Safety-related components like armor panels, reinforcements |
|
Natural Fiber Reinforced Polymer |
Sustainable; Good strength for non-structural components |
Interior panels, door panels |
|
Metal Matrix Composites (MMC) |
High strength; Heat resistance |
Brake discs, engine components, drivetrain parts |
|
Ceramic Matrix Composites (CMC) |
High-temperature resistance |
Exhaust components, turbocharger rotors |
|
Polymer Matrix Composites (PMC) |
Versatile; Includes thermoset and thermoplastic composites |
Bumpers, dashboards, fuel tanks |
|
Hybrid Composites |
Combination of different fibers (e.g., carbon and glass) |
Body panels, structural parts |
|
Sheet Molding Compound (SMC) |
Easy to manufacture; Good strength |
Body panels, hoods, trunk lids |
|
Carbon-Carbon Composites |
Extremely high- temperature resistance |
High-performance brake systems |
CFRP is commonly used to manufacture critical racing car components such as the chassis and monocoque, where lightweight strength is paramount. The monocoque structure, which integrates the vehicle’s main body into a single shell, benefits from CFRP’s stiffness and impact resistance, providing safety and performance advantages. Body panels, including the hood, doors, and bumpers, are also often made from CFRP to reduce weight while maintaining high durability. In the suspension system, CFRP is used for load- bearing components like suspension arms, where its low weight and high stiffness directly influence the car’s handling and stability. Additionally, CFRP driveshafts are preferred for their lightweight nature, reducing rotational inertia and leading to faster acceleration and improved vehicle dynamics. The replacement of metallic components with CFRP in these applications is driven by its significant weight reduction, which translates into better fuel efficiency, faster speeds, superior handling, and improved safety due to its energy-absorbing properties during crashes.
On the other hand, Glass Fiber Reinforced Polymer (GFRP) is valued for its good strength-to-weight ratio, flexibility, and cost- effectiveness. Although not as strong or stiff as CFRP, GFRP is still highly valuable in racing car manufacturing, especially where cost considerations are more critical. GFRP provides sufficient strength for many components while being more affordable than carbon fiber, making it an attractive option for parts that do not require the extreme performance characteristics of CFRP. GFRP’s flexibility and toughness make it suitable for components that need to withstand impacts without cracking, and its corrosion resistance ensures that the components have a long lifespan, even in challenging racing conditions.
GFRP is often used to produce larger body panels, such as the front and rear fenders, where its lighter weight compared to metals like steel or aluminum helps reduce the vehicle’s overall weight while still providing adequate strength and durability. It is also commonly employed in the interior components of racing cars, such as dashboards, door panels, and seat frames, where its balance between performance and cost is particularly beneficial. In addition to these applications, GFRP is used for engine covers and undertrays, where heat resistance and durability are required, but the extreme performance of CFRP is unnecessary. Secondary structural elements, such as brackets and mounts, benefit from GFRP’s moderate strength and flexibility without adding unnecessary weight or cost.
Aramid fibers like Kevlar are another composite material specialized in racing vehicles. Known for their exceptional impact resistance and toughness, aramid fibers are often employed in applications where durability and safety are paramount. Kevlar, in particular, is famous for its use in bulletproof vests, but its properties make it equally valuable in motorsport. In racing vehicles, Kevlar is frequently used with other fibers to reinforce areas prone to impact or abrasion, such as underbody panels, wheel arches, and fuel tanks. The material’s ability to absorb and dissipate energy from impacts makes it an excellent choice for enhancing the crashworthiness of racing vehicles, thereby protecting both the car and the driver in high-speed collisions [5]. Additionally, Kevlar’s resistance to heat and fire further contributes to its utility in motorsport applications, where safety is of utmost concern.
Hybrid composites have introduced a new dimension to material design in racing vehicles. Hybrid composites combine two or more different types of fibers, such as carbon, glass, and aramid, within a matrix to exploit the best properties of each material. This approach allows for developing composites tailored to meet the specific demands of different vehicle components. For example, a hybrid composite combining carbon fiber with Kevlar can offer high strength and impact resistance, making it ideal for components like body panels that need to be both lightweight and durable [6]. Hybrid composites are increasingly overcoming the traditional trade-offs between weight, strength, and cost in racing cars. These materials are particularly valuable in areas where different performance criteria must be balanced, such as in constructing suspension systems, where stiffness, weight, and energy absorption all play critical roles.

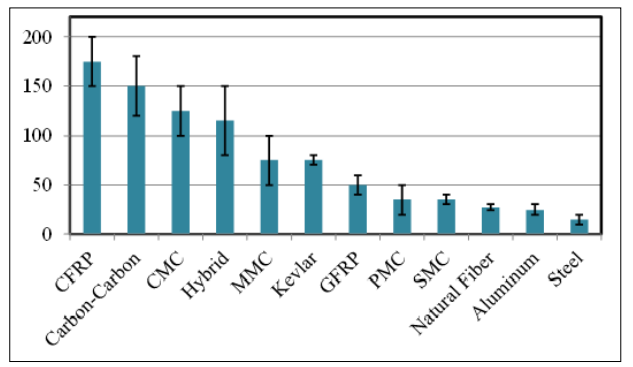

Figure 2 compares the strength-to-weight ratio (mean ± standard deviation) of various composites commonly used in racing cars with traditional metals. Carbon Fiber Reinforced Polymer (CFRP) stands out with the highest mean strength-to-weight ratio of 175 ± 25 kN·m/kg, making it a preferred material for racing cars due to its superior strength and lightweight. Carbon-carbon composites and Ceramic Matrix Composites (CMC) follow closely, with mean values of 150 ± 30 kN·m/kg and 125 ± 25 kN·m/kg, respectively, both offering high strength with relatively low weight, contributing to enhanced performance in high-speed vehicles. Hybrid composites also show significant strength with a mean of 115 ± 35 kN·m/kg, demonstrating the potential for custom-tailored properties in racing applications. Metal Matrix Composites (MMC) and Kevlar Reinforced Polymers offer moderate strength-to-weight ratios of 75 ± 25 kN·m/kg and 75 ± 5 kN·m/kg, respectively, indicating their utility in specific racing components where both strength and reduced weight are critical. Glass Fiber Reinforced Polymer (GFRP) and Polymer Matrix Composites (PMC) provide lower strength-to-weight ratios (50 ± 10 kN·m/kg and 35 ± 15 kN·m/kg, respectively), but are still advantageous over traditional metals like aluminum and steel, which have much lower ratios of 27.5 ± 2.5 kN·m/kg and 15 ± 5 kN·m/kg. The comparison highlights the significant advancements in material technology, where composites offer far superior performance characteristics in terms of strength-to-weight ratio compared to conventional metals, making them indispensable in the high-performance environment of racing cars.
Figure 2: Strength-to-Weight (kN·m/kg) ratio of different composites and metals used in racing cars.
In suspension systems, the use of composite materials has led to improvements in handling and responsiveness. Lightweight composite components reduce unsprung mass, allowing the suspension to react more quickly to changes in the road surface, improving tire contact and grip. Maintaining maximum traction through corners is essential for fast lap times during racing. The stiffness and strength of composites also contribute to more precise control of the suspension geometry, further enhancing the vehicle’s handling characteristics [7].
Molding composites into complex shapes creates highly optimized aerodynamic surfaces that improve downforce and reduce drag. This makes the car faster on the straights and more stable through corners, as the increased downforce helps keep the tires firmly planted on the track. Using lightweight composites in these components adds minimal weight to the vehicle, further enhancing performance [8].
In wheels and brake systems, composite materials balance weight reduction and performance. Carbon-ceramic brake discs are much lighter than their metal counterparts and offer superior heat resistance and fade performance. Using composites in wheels also reduces rotational mass, directly impacting acceleration, braking, and handling [9].
Finally, seats, dashboards, and other interior parts made from composites can be designed to be both lightweight and strong, contributing to the overall weight reduction of the vehicle while still providing the necessary protection and ergonomic support for the driver.
In summary, integrating composite materials in high-performance racing vehicles has substantially increased speed, handling, and efficiency. The continued evolution of these materials promises even greater achievements in the future as engineers and designers continue to push the limits of what is possible on the track.
While composite materials offer significant advantages in reducing weight and enhancing performance in high-performance racing vehicles, they also present several challenges and limitations that must be carefully considered. One of the most significant challenges is the high cost and complexity of composite materials. CFRPs, for example, are known for their superior strength- to-weight ratio, but this comes at a substantial financial cost. The raw materials, particularly high-grade carbon fibers, are expensive, and the specialized processes required to manufacture composite components add to the overall cost. Techniques such as autoclaving, where composite materials are cured under high pressure and temperature, are costly and time-consuming. These factors can make the widespread adoption of composites in racing vehicles prohibitively expensive, especially for smaller teams or manufacturers operating on tight budgets. Moreover, the intricate manufacturing processes require high precision and expertise, limiting the number of facilities capable of producing high-quality composite components. This creates a barrier to entry for some teams and can lead to supply chain constraints, further complicating the use of composites in motorsports.
Another significant challenge with composites lies in their durability and reparability. CFRP is incredibly strong and lightweight. It is also brittle than traditional metals, making them more susceptible to damage under certain conditions. In the high- stress racing environment, where vehicles are regularly subjected to impacts, vibrations, and extreme forces, composite materials can be prone to cracking, delamination, or other damage that is not always immediately visible. The hidden nature of some composite damage presents a unique challenge, as it can compromise the vehicle’s structural integrity without being easily detectable.
Furthermore, repairing damaged composite components is far more complex than repairing metal parts. While a dented metal panel might be hammered back into shape, a damaged composite component often requires replacement or the application of specialized repair techniques that can restore its structural integrity. However, these repairs are often expensive and time-consuming; the components may need to be entirely replaced in some cases. This increases the cost of maintenance and requires teams to have access to specialized knowledge and tools to carry out effective repairs.
Regulatory and safety considerations also present significant challenges in using composite materials in racing vehicles. The adoption of new materials and technologies in motorsport is subject to stringent regulations to ensure the safety of drivers, teams, and spectators. Regulatory bodies like the Fédération Internationale de l’Automobile (FIA) impose strict guidelines on the materials used in different parts of a racing vehicle, including standards for crashworthiness, fire resistance, and overall structural integrity [10]. While composites offer many benefits, their different failure modes compared to metals can raise safety concerns. Whereas metals typically deform plastically under extreme stress, composites tend to fail catastrophically, often shattering or breaking apart. This characteristic can complicate the assessment of a vehicle’s safety post-crash and requires regulatory bodies to develop new testing standards and procedures specific to composite materials. Additionally, composites must be balanced against the need for environmental sustainability, as the production and disposal of these materials can have significant ecological impacts. Regulatory frameworks are continually evolving to address these concerns, but the dynamic nature of material science often outpaces the regulatory processes, creating a lag between innovation and regulation.
Developing new resin systems that are easier to recycle or designing composites that can be disassembled and reused will be key to reducing the environmental impact of racing. Future research could focus on creating composites that maintain their properties after recycling, ensuring they can be used repeatedly without compromising performance.
Integrating lightweight composite materials in high-performance racing vehicles has significantly transformed motorsports. These materials, including Carbon Fiber Reinforced Polymers (CFRP), Glass Fiber Reinforced Polymers (GFRP), Aramid fibers, and hybrid composites, offer unparalleled benefits in reducing vehicle weight while enhancing structural strength and performance. The reduced mass of racing vehicles contributes to improved acceleration, handling, and fuel efficiency, ultimately leading to superior on-track performance.
However, the adoption of composite materials is not without challenges. The high cost of production, complexity in manufacturing, and issues related to durability and reparability pose significant barriers to their widespread use. Additionally, regulatory and safety concerns necessitate ongoing innovation to ensure that composite materials meet the stringent standards required in motorsports.
Looking forward, the future of composite materials in racing is promising. Advances in nano-reinforced composites, bio-composites, smart composites, and self-healing materials are expected to push achievable boundaries, offering new opportunities for performance enhancement and sustainability. Integration with other lightweight materials, the use of additive manufacturing, and the development of multifunctional and adaptive composites will further drive innovation in the field.
As the industry evolves, the emphasis on sustainability, recyclability, and the use of AI in composite design will become increasingly important. These advancements will ensure that composite materials continue to play a central role in the future of high-performance racing, enabling vehicles to achieve greater speeds, agility, and efficiency while minimizing their environmental impact.
