Author(s): Ashish Bansal
Large pre-trained language models have been shown to store factual knowledge in their parameters, and achieve state- of-the-art results when fine-tuned on down- stream NLP tasks. However, their ability to access and precisely manip- ulate knowledge is still limited, and hence on knowledge- intensive tasks, their performance lags behind task-specific architectures. Additionally, providing provenance for their decisions and updating their world knowledge remain open research problems. Pre- trained models with a differentiable access mechanism to explicit non-parametric memory have so far been only investigated for extractive downstream tasks. Retrieval-Augmented Generation (RAG) is a prevalent ap- proach to infuse a private knowledge base of documents with Large Language Models (LLM) to build Generative Q&A(Question-Answering) systems. However, RAG accu- racy becomes increasingly challenging as the corpus of docu- ments scales up,with Retrievers playing an outsized role in the overall RAG accuracy by extracting the most relevant document from the corpus to provide context to the LLM. In this paper, we propose different ways to optimize the re- treivals, Reciprocal Rank Fusion, Reranking and dynamic chunking schemes.
Generative AI is taking the world by storm. However, one of the first challenges organizations face in deploying large lan- guage models (LLMs) in their corporate environment is how to make LLMs understand their proprietary enterprise data. However, many of them ran into similar problems while try- ing to integrate generative AI into enterprise environments, like privacy breaches, lack of relevance, and a need for better personalization in the results they received.
To address this, most have concluded that the answer lies in retrieval augmented generation (RAG). Retrieval aug- mented generation (RAG) is the leading technique for en- hancing LLMs with enterprise data. For example, to ensure chatbots that are powered by LLMs are responding with accurate, relevant responses, companies use RAG to give LLMs domain-specific knowledge drawn from user manu- als or support documents.
RAG separates knowledge retrieval from the genera- tion process via external discovery systems like enterprise search. This enables LLMs and the responses they provide to be grounded in real, external enterprise knowledge that can be readily surfaced, traced, and referenced.
RAG represents an approach to text generation that is based not only on patterns learned during training but also on dynamically retrieved external knowledge. This method combines the creative flair of generative models with the encyclopedic recall of a search engine. The efficacy of the RAG system relies fundamentally on two components: the Retriever (R) and the Generator (G), the latter representing the size and type of LLM.
The language model can easily craft sentences, but it might not always have all the facts. This is where the Re- triever (R) steps in, quickly sifting through vast amounts of documents to find relevant information that can be used to inform and enrich the language model’s output. Think of the retriever as a researcher part of the AI, which feeds the con- textually grounded text to generate knowledgeable answers to Generator (G). Without the retriever, RAG would be like a well-spoken individual who delivers irrelevant information. Retrieval-Augmented Generation (RAG) is revolutioniz- ing traditional search engines and AI methodologies for in- formation retrieval. However, standard RAG systems em- ploying simple semantic search often lack efficiency and precision when dealing with extensive data repositories. Hy- brid search, on the other hand, combines the strengths of different search methods, unlocking new levels of efficiency and accuracy. Hybrid search is flexible and can be adapted to tackle a wider range of information needs.
Hybrid search can also be paired with semantic rerank- ing (to reorder outcomes) to further enhance performance. Combining hybrid search with reranking holds immense po- tential for various applications, including natural language processing tasks like question answering and text summa- rization, even for implementation at a large-scale.
In current Retrieval-Augmented Generation (RAG) systems, word embeddings are used to represent data in the vector database, and vector similarity search is commonly used for searching through them. For LLMs and RAG systems, em- beddings - because they capture semantic relationships between words - are generally preferred over keyword-based representations like Bag-of-words (BoW) approaches.
But each of vector similarity search and keyword search has its own strengths and weaknesses. Vector similarity search is good, for example, at dealing with queries that contain typos, which usually don’t change the overall intent of the sentence. However, vector similarity search is not as good at precise matching on keywords, abbreviations, and names, which can get lost in vector embeddings along with the surrounding words. Here, keyword search performs bet- ter.
Therefore, combining semantic search with traditional keyword- based search (hybrid) proves beneficial in over- coming these limitations and yielding better results. By in- tegrating the strengths of both search algorithms, hybrid search enhances the relevance of returned search results, al- lowing for a comprehensive search over both document con- tent and underlying meaning in RAG applications. We com- bines vector and keyword search methods. In this context, we used the widely utilized BM25 algorithm as part of the keyword search component. BM25 relies on lexical match- ing, scoring documents based on query term frequency and document length normalization.
We can see a few common components like qi, IDF(qi), f(qi,D), k1, b, and something about field lengths. Here’s what each of these is all about:
A higher/lower k1 value means that the slope of “tf() of BM25” curve changes. This has the effect of changing how “terms occurring extra times add extra score.” An interpre- tation of k1 is that for documents of the average length, it is the value of the term frequency that gives a score of half the maximum score for the considered term. The curve of the impact of tf on the score grows quickly when tf() k1 and slower and slower when tf() > k1.
Benefits of using Hybrid search:
Precision: Keyword search enables exact matches to the query, leaving no room for ambiguity.
Context: Semantic search allows algorithms to under- stand the intent of the query. If no keywords are matched, the semantic search will step in to analyze the context and meaning behind the query, ensuring that relevant re- sults are still provided and covering any gaps in keyword- based matching.
Relevance: Both techniques complement each other and improve relevance for unseen queries.
That being said, keyword search is not as good as vec- tor similarity search at fetching relevant results based on se- mantic relationships or meaning, which are only available via word embeddings. For example, a keyword search will relate the words “the river bank” and “the Bank of America” even though there is no actual semantic connection between the terms - a difference to which vector similarity search is sensitive. Keyword search would, therefore, benefit from vector search, but the prevailing approach is not to combine them but rather to implement them separately using distinct methodologies.

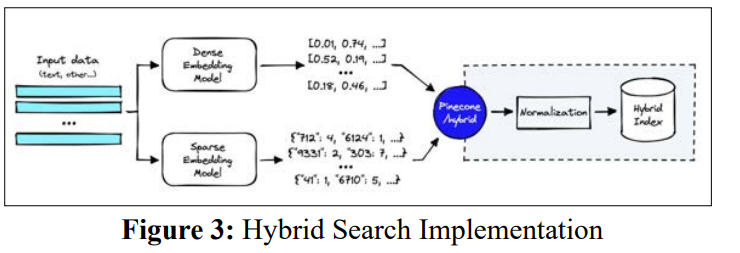

In hybrid search -a keyword-sensitive semantic search ap- proach, we combine vector search and keyword search algo- rithms to take advantage of their respective strengths while mitigating their respective limitations. Let’s take a look at the components that make up the ar- chitecture of hybrid search. Hybrid search combines keyword-based and vector search techniques by fusing their search results and reranking them. Keyword-based search in the context of hybrid search often uses a representation called sparse embeddings, which is why it is also referred to as sparse vector search.Sparse embeddings can be generated with different algorithms. The most commonly used algorithm for sparse embeddings is BM25 (Best match 25), which builds upon the TF-IDF (Term Frequency-Inverse Document Frequency) approach and refines it. BM25 is expalined in the above section.
Sparse embeddings are vectors with mostly zero values with only a few non-zero values, as shown below.
[0, 0, 0, 12, 23, 0, 0, 0] Vector search Vector search is a modern search technique that has emerged with the advances in ML. Modern ML al- gorithms, such as Transformers, can generate a numerical representation of data objects in various modalities (text, im- ages, etc.) called vector embeddings. These vector embeddings are usually densely packed with information and mostly comprised of non-zero values (dense vectors), as shown below. This is why vector search is also known as dense vector search.
[0.634, 0.234, 0.867, 0.042, 0.249, 0.093, 0.029, 0.123, 0.234,]
A search query is embedded into the same vector space as the data objects. Then, its vector embedding is used to cal- culate the closest data objects based on a specified similarity metric, such as cosine distance. The returned search results list the closest data objects ranked by their similarity to the search query.
Both the keyword-based search and the vector search re- turn a separate set of results, usually a list of search re- sults sorted by their calculated relevance. These separate sets of search results must be combined. There are many different strategies to combine the ranked results of two lists into one single ranking, as outlined in a paper by Benham and Culpepper [1].
Generally speaking, the search results are usually first scored. These scores can be calculated based on a spec- ified metric, such as cosine distance, or simply just the rank in the search results list.
Then, the calculated scores are weighted with a parame- ter alpha, which dictates each algorithm’s weighting and impacts the results re-ranking.
hybrid_score = (1- alpha) * sparse_score + alpha * dense_score Usually, alpha takes a value between 0 and 1, with
Below, you can see a minimal example of the fusion be- tween keyword and vector search with scoring based on the rank and an alpha = 0.5
Below, you can see a minimal example of the fusion be- tween keyword and vector search with scoring based on the rank and an alpha = 0.5
A RAG pipeline has many knobs you can tune to improve its performance. One of these knobs is to improve the relevance of the retrieved context that is then fed into the LLM because if the retrieved context is not relevant for answering a given question, the LLM won’t be able to generate a relevant answer either.
Depending on your context type and query, you have to determine which of the three search techniques is most beneficial for your RAG application. Thus, the parameter alpha, which controls the weighting between keyword- based and semantic search, can be viewed as a hyperpa- rameter that needs to be tuned
Rank fusion algorithms, particularly Reciprocal Rank Fusion (RRF), provided a promising alterna- tive.Reciprocal Rank Fusion (RRF), a simple method for combining the document rankings from multiple IR systems, consistently yields better results than any individual system, and better results than the standard method Condorcet Fuse. This result is demonstrated by using RRF to combine the results of several TREC experiments, and to build a meta-learner that ranks the LETOR 3 dataset better than any previously reported method. Here’s how most rank fusion algorithms work:
Chunking is an essential preprocessing step when preparing data for RAG for a number of reasons.
While the embedding model imposes a hard maximum limit on the number of tokens it can embed, that doesn’t mean your chunks need to reach that length. It simply means they can’t exceed it. In fact, utilizing the maximum length for each chunk, such as 6200 words (8K tokens), may be excessive in many scenarios. There are several compelling reasons to opt for smaller chunks.
The very basic way to split a large document into smaller chunks is to divide the text into N-character sized chunks. Often in this case, you would also specify a certain num- ber of characters that should overlap between consec- utive chunks. This somewhat reduces the likelihood of sentences or ideas being abruptly cut off at the boundary between two adjacent chunks. However, as you can imag- ine, even with overlap, a fixed character count per chunk, coupled with a fixed overlap window, will inevitably lead to disruptions in the flow of information, mixing of dis- parate topics, and even sentences being split in the mid- dle of a word. The character splitting approach has abso- lutely no regard for document structure.
One way to address this problem is to use a recursive chunking method that helps to preserve individual sen- tences. With this method you can specify an ordered list of separators to guide the splitting process. For example, here are some commonly used separators:
”\n\n” - Double new line, commonly indicating para- graph breaks ”\n” - Single new line ”.” - Period
” ” - Space
If we apply the separators listed above in their specified order, the process will go like this. First, recursive chunk- ing will break down the document at every occurrence of a double new line (”\n\n”). Then, if these resulting seg- ments still exceed the desired chunk size, it will further break them down at new lines (”\n”), and so on.
While this method significantly reduces the likelihood of sentences being cut off mid-word, it still falls short of capturing the complex document structure. Documents often contain a variety of elements, such as paragraphs, section headers, footers, lists, tables, and more, all of which contribute to their overall organization. However, the recursive chunking approach outlined above primar- ily considers paragraphs and sentences, neglecting other structural nuances.
This is the technique where you optimized the chunk with given contraints of the token size and how the documnet is layout such as a document can contains table, images and other components. This can be down by converting the documnet to markdown format and then chunking based on the headings, sub- headings. More ways to handle table in dynamic pages where there are huge tables, to handle this cases the table can chunked into smaller tables making sure the headers are stored for all the chunks to keep the semantics of information. This header information is very useful in correctly identifying in interpreting these tables.
Other piece is to handle the images within a document where VLM (Vision Language Model) can be utilzed to extract those information.
Chunking is one of the essential preprocessing steps in any RAG system. The choices you make when you set it up, will influence the retrieval quality, and as a consequence, the overall performance of the system. Here are some consider- ations to keep in mind when designing the chunking step:
Experiment with different chunk sizes: While large chunks may contain more context, they also result in coarse representation, negatively affecting the retrieval precision. Optimal size chunk depends on the nature of your documents, but aim to optimize for smaller chunks without losing important context.
|
token len |
Vectors |
success |
near miss |
|
500-1000 |
vector search |
90(67%) |
9(7%) |
|
500-1000 |
Hybrid search(α = 0.5)
|
99(71%) |
0 |
For any Rag systems, the first part of the answering any question is the search for the document where the answer ex- ists. To search the underlying documents we were relying on the sematic search using the embeddings from ADA model. As we explore more on the searching capabilities using these embeddings, we have to remember that vector databases are not the panacea of search – they are very good at semantic search, but in many cases, traditional keyword search can yield more relevant results and increased user satisfaction.
In our experiment, search is based purely on semantic search using vectors from ADA model. The semantic search helps to bring the required URL to answer the given query for around 67% of time (top 5) and semantic search tends to nearly miss the urls for 3% of queries i.e. URLs exist within near miss window (top 6-10). To improve the search and get the required URL at top, Hybrid search was a promis- ing direction to improve the searching capabilities. We have seen that from this methodology we are able to convert those near miss to a success in terms for source search. Results in search results table [1-16].
In this paper we talked about the hybrid search and chunk- ing that can be utilized to optimize the RAG system, the con- text of hybrid search as a combination of keyword-based and vector searches. Hybrid search merges the search results of the separate search algorithms and re-ranks the search re- sults accordingly.
In hybrid search, the parameter alpha controls the weight- ing between keyword-based and semantic searches. This pa- rameter alpha can be viewed as a hyperparameter to tune in RAG pipelines to improve the accuracy of search results.
We proceeded with our hypothesis of Hybrid search can boost the search capabilities of QA System and we exper- imented with including sparse embedding and making our search a hybrid search with getting best of both semantic and keyword search. As well as with dynamic chunking(discussed above) we were able to get better chunks which helped in better search and good synthesis for the RAG systems.
